NETWORK_ANALYSIS_BY_WIRESHARK



VISITE  :   CLOUD SHARK PERSONNEL

.

VERIFY:

 VM: IP= 192.168.3.2 ping to 192.168.3.1

Real machine ip= 192.168.3.12 launch capture from rpcapng addresse 192.168.3.2

WIRESHARK BASIC FILTERS

FILTER	USAGE
Ip.addr == 10.0.0.1	Specify IP address
Ip.src == 10.0.0.1	Specify IP address in source
Ip.dst == 10.0.0.1	Specify IP address in destination
Ip.addr == 10.0.0.0/24	Specify network
Eth.addr== ‘’mac address in semi colon format	Specify mac address
Tcp.port == ‘’port number’’	Specify port number
Tcp.srcport==	Specify only cource port
Tcp.dstport ==	Specify only destination port
<=le or >=ge or != neq  or lt< or gt>	Operators
&& /and	operators
Or / ||	operators
() or !()	grouping
!(arp or icmp or stp or bootp)	Remove (arp,icmp,stp,bootp)

frame matches "\.(?i)mp3" frame matches "\.(?i)mp4" frame matches "\.(?i)rar" frame matches "\.(?i)zip"

frame contains "google" frame contains "username" frame contains "mail"

http "For HTTP Traffics" tcp.port==80 " Filter packets based on tcp port 80 - sure for http protocol tcp.port ==53 "Filter packets based on udp port 53 - for dns servers" tcp.port == 21 "Filter packets based on 21 port for ftp servers" tcp.port==3389 " for Remote Desktop Protocol "

How to download files from a Wireshark capture. (Follow TCP Stream)

Example display filter per port

Ip.addr == 192.168.0.0/24 and tcp.dstport == 80 and http.host

(Ip.addr == 192.168.0.0/24 and tcp.dstport == 80 and http.request.method == "GET") or (tls)

ip.addr == 192.168.0.0/24 and tcp.dstport == 80 and http.host and http.request.method = "POST "

CAPTURE FILTER

you can use directly capture filter is not display filter , you start only your filter from interface capture.

Add column from packet filter display like http.host

IMAGE CAPTURE USING WIRESHARK

tshark: Basic Tutorial with Practical

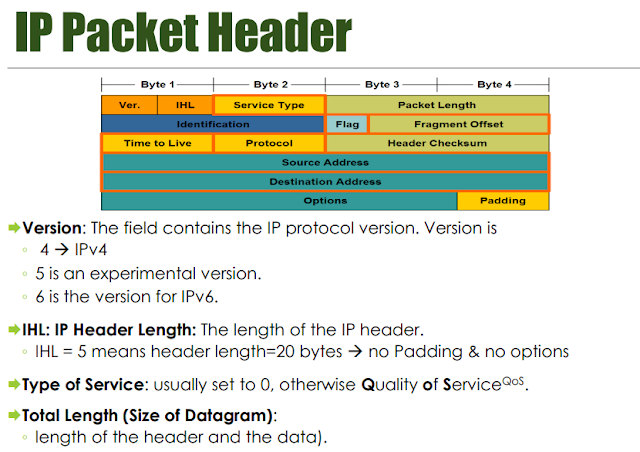

IP byte offsets
=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+

ip[0] & 0x0f		- protocol version
ip[0] & 0xf0		- protocol options
ip[0] & 0xff00		- internet header length
ip[1]			- TOS
ip[2:2]			- Total length
ip[4:2]			- IP identification
ip[6] & 0xa		- IP flags
ip[6:2] & 0x1fff 	- fragment offset area
ip[8]			- TTL
ip[9]			- protocol field
ip[10:2]		- header checksum
ip[12:4]		- src IP address
ip[16:4]		- dst IP address
ip[20:3]		- options
ip[24]			- padding

Src IP = Dest IP (land attack)
(ip[12:4] = ip[16:4])

IP versions !=4
(ip[0] & 0xf0 != 0x40)

IP with options set:
(ip[0:1] & 0x0f > 5)

Broadcasts to x.x.x.255:
(ip[19] = 0xff)

Broadcasts to x.x.x.0
(ip[19] = 0x00)


TCP byte offsets, including anomalous TCP flag settings.
=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+

tcp[0:2]		- src port
tcp[2:2]		- dst port
tcp[4:4]		- seq number
tcp[8:4]		- ack number
tcp[12] & 0x00ff	- data offset
tcp[12] & 0xff00	- reserved
tcp[13]			- tcp flags

tcp[13] & 0x3f = 0	- no flags set (null packet)
tcp[13] & 0x11 = 1	- FIN set and ACK not set
tcp[13] & 0x03 = 3	- SYN set and FIN set
tcp[13] & 0x05 = 5	- RST set and FIN set
tcp[13] & 0x06 = 6	- SYN set and RST set
tcp[13] & 0x18 = 8	- PSH set and ACK not set
tcp[13] & 0x30 = 0x20	- URG set and ACK not set
tcp[13] & 0xc0 != 0	- >= one of the reserved bits of tcp[13] is set

tcp[14:2]		- window
tcp[16:2]		- checksum
tcp[18:2]		- urgent pointer
tcp[20:3]		- options
tcp[23]			- padding
tcp[24]			- data

UDP byte offsets, header only
=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+

udp[0:2]		- src port
udp[2:2]		- dst port
udp[4:2]		- length
udp[6:2]		- checksum
udp[8:4]		- first 4 octets of data

Crafted packets with impossible UDP lengths:
udp[4:2] < 0) or (udp[4:2] > 1500


ICMP
=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+

icmp[0]			- type
icmp[1]			- code
icmp[3:2]		- checksum

Destination Unreachable:
icmp[0] = 0x3 (3)

icmp[4:4]		- unused (per RFC]
icmp[8:4]		- internet header + 64 bits original data
icmp[1]			- 0 = net unreachable;
			- 1 = host unreachable;
			- 2 = protocol unreachable;
			- 3 = port unreachable;
			- 4 = fragmentation needed and DF set;
			- 5 = source route failed.

Time Exceeded:
icmp[0] = 0xB (11)

icmp[4:4]		- unused (per RFC]
icmp[8:4]		- internet header + 64 bits original data
icmp[1]			- 0 = TTL exceeded intransit
			- 1 = fragment reassembly time exceeded

Parameter Problem:
icmp[0] = 0xC (12)

icmp[1]			- 0 = pointer indicates error
icmp[4]			- pointer
icmp[5:3]		- unused, per RFC
icmp[8:4]		- internet header + 64 bits original data


Source Quench:
icmp[0] = 0x4 (4)

icmp[1]			- 0 = may be received by gateway or host
icmp[4:4]		- unused, per RFC
icmp[8:4]		- internet header + 64 bits original data

Redirect Message:
icmp[0] = 0x5 (5)

icmp[1]			- 0 = redirect for network
			- 1 = redirect for host
			- 2 = redirect for TOS & network
			- 3 = redirect for TOS & host
icmp[4:4]		- gateway internet address
icmp[8:4]		- internet header + 64 bits original data

Echo/Echo Reply:
icmp[0]	= 0x0 (0) (echo reply)
icmp[0]	= 0x8 (8) (echo request)

icmp[4:2]		- identifier
icmp[6:2]		- sequence number
icmp[8]			- data begins

Timestamp/Timestamp Reply:
icmp[0] = 0xD (13) (timestamp request)
icmp[0] = 0xE (14) (timestamp reply)

icmp[1]			- 0
icmp[4:2]		- identifier
icmp[6:2]		- sequence number
icmp[8:4]		- originate timestamp
icmp[12:4]		- receive timestamp
icmp[16:4]		- transmit timestamp

Information Request/Reply:
icmp[0] = 0xF (15) (info request)
icmp[0] = 0x10  (16) (info reply)

icmp[1]			- 0
icmp[4:2]		- identifier
icmp[6:2]		- sequence number

Address Mask Request/Reply:
icmp[0] = 0x11 (11) (address mask request)
icmp[0] = 0x12 (12) (address mask reply)


Sources:

RFC768, "User Datagram Protocol Specification"
RFC791, "Internet Protocol Specification"
RFC792, "Internet Control Message Protocol Specification"
RFC793, "Transmission Control Protocol"
filter files from SHADOW-1.8 source distribution
man pages for tcpdump
"TCP/IP and tcpdump Pocket Reference Guide", SANS

C:\Program Files\Wireshark>tshark.exe -D

C:\Program Files\Wireshark>tshark.exe -i 4
