VRF is configured on the same router. The Fa 0/0 interface
on the COMMON router has divided on three subinterfaces, one to
VOICE, second to DATA and third to VIDEO.
for each of the three VRFs. The VRFs are named: VOICE, DATA and VIDEO.
Demonstrate a basic VRF-Lite configuration
- VOICE VRF : VLAN 2
- DATA VRF: VLAN 3
- VIDEO VRF: VLAN 4
Define one or more VRFs
Assign an interface or a subinterface to a VRF instance.

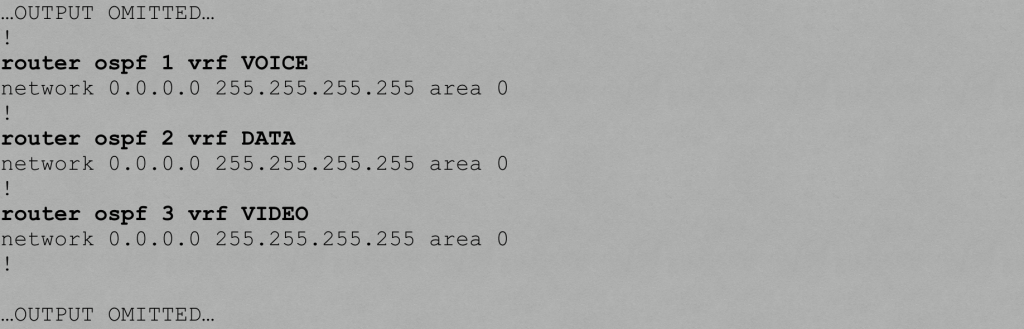

Associate a routing process with each VRF.

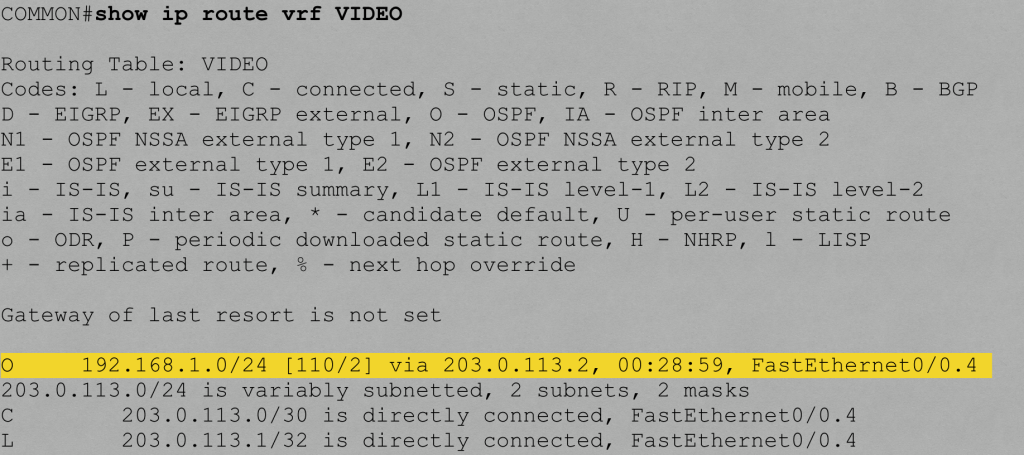

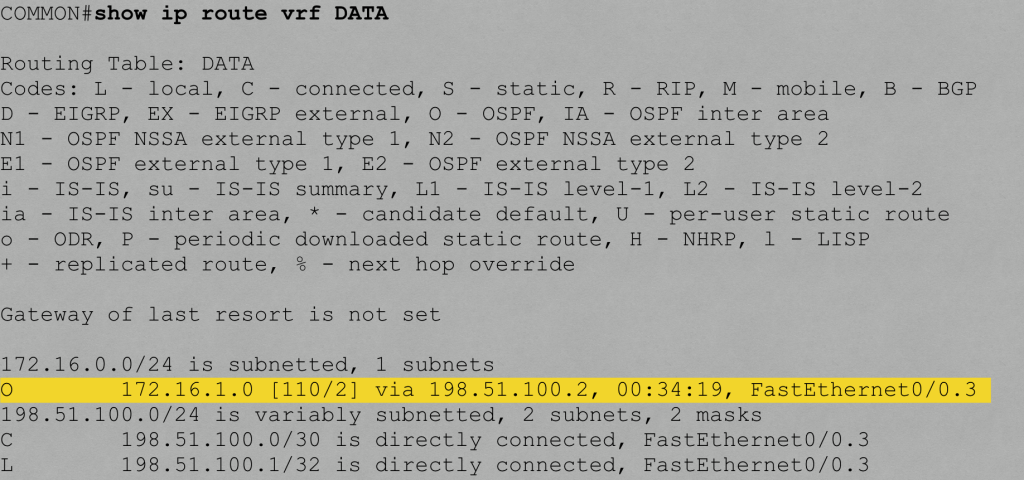

Verifying VRF-Lite
