Uses for routing table information, current configuration, and packet queue.

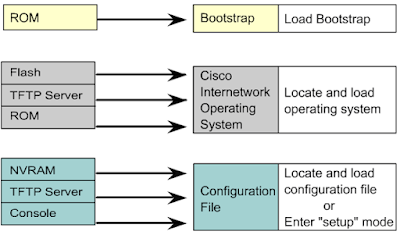

NVRAM:
Used to store a startup and restart configuration file.
FLAH:
Used to store iOS images
CONSOL PORT:
Phisyque access for initial configuration
INTERFACES:
Interfaces provide LAN and WAN connectivity

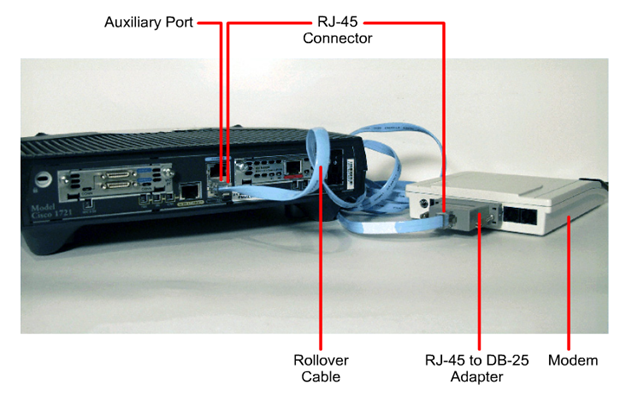

Management port connections
Connecting LAN interfaces
In most LAN environments, the router is connected to the network using an Ethernet or Fast Ethernet
interface. The router is a host that communicates with the LAN through a hub or switch. This
connection must be established using a straight cable.

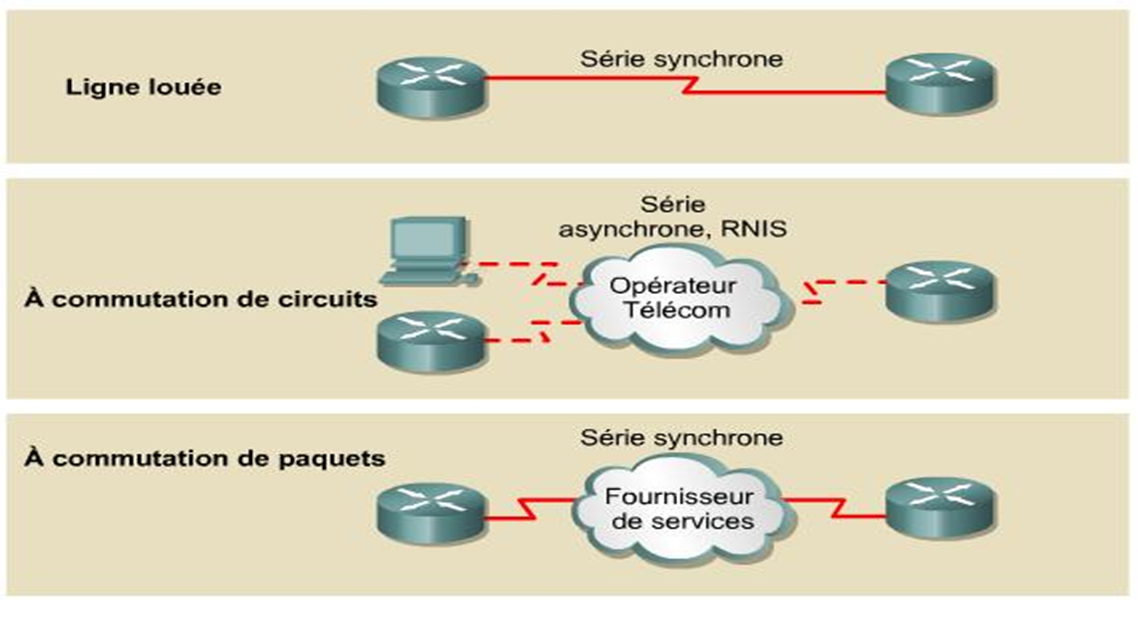

WAN Network Type
Router serial port:
Router WAN Serial Connector
