Medium-Sized Switched Network Construction

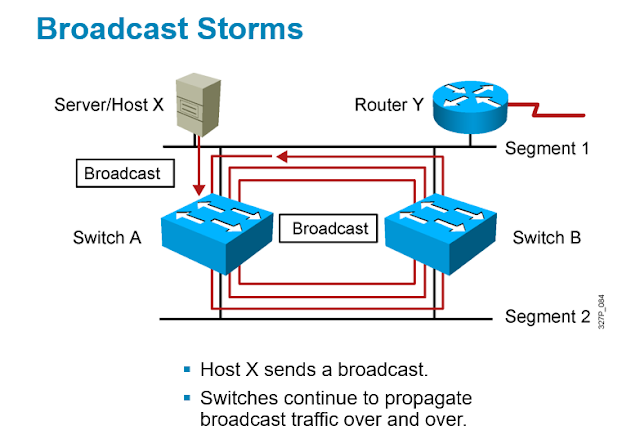

PVST+ (Per-VLAN Spanning Tree Protocol)
On this topology Two VLANs, one equal 10 and second equal 20, are being
trunked across these links.
objectif is to configure S3 as the root bridge for VLAN 20 and S1 as the root
bridge for VLAN 10.
Port F0/3 on S2 is the forwarding port for VLAN 20 and the blocking port for
VLAN 10. Port F0/2 on S2 is
the forwarding port for VLAN 10 and the blocking port for VLAN 20.
Primary and Secondary Root Bridges for Each VLAN on S3
S3(config)# spanning-tree vlan 20 root primary S3(config)# spanning-tree vlan 10 root secondary
Primary and Secondary Root Bridges for Each VLAN on S1
S1(config)# spanning-tree vlan 10 root primary S1(config)# spanning-tree vlan 20 root secondary
Configuring the Lowest Possible Priority to Ensure That a Switch Is Root
S3(config)# spanning-tree vlan 20 priority 4096
Guide to Multiple Spanning Tree Protocol
Introduction
MSTP or Multiple spanning tree protocol is based on IEEE 802.1s standard. MSTP is a protocol which maps multiple VLANs to a single instance.
Before MSTP, normal STP 802.1d or Rapid STP 802.1 which maps single vlan to a single STP instance. MSTP uses the rapid spanning tree protocol features
such as fast convergence, port states, port roles, edge ports and link types. However, with these functionalities, MSTP has also added some new features like regions, instances and mapping.
- Configure the hostname of each switch as SW1, SW2, and SW3
- Set the domain vtp mode as server and domain name as “marwat”
- Establish a trunk link among all three switches.
MSTP Configuration
We will define each MST command in the screenshots below. Go to global configuration mode and configure spanning-tree mode as most.
Enter into mst configuration through the following command
